Glasvezel gyroscoop strapdown tertial navigatiesysteem

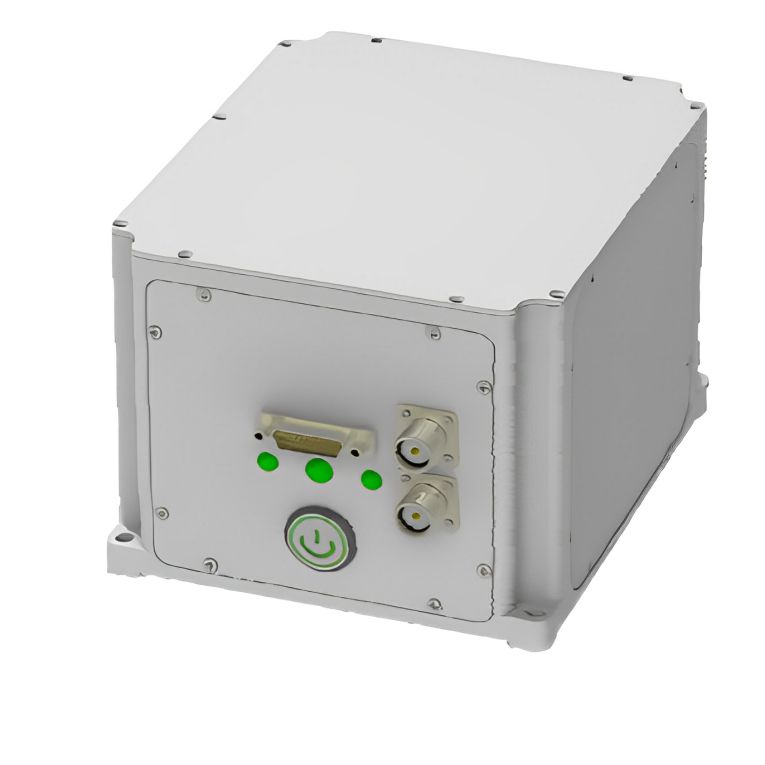

JIO-FOGD70A FIBER OPTISCHE Gyroscoop Strapdown Inertial Navigation System is een kosteneffectief inertiaal navigatiemetingproduct dat wordt gebruikt om de positie, snelheid, houding, hoeksnelheid en versnelling van de drager te meten. Het apparaat is ontwikkeld door middel van kosteneffectieve glasvezelgyro en kwarts-versnellingsmeter. De hoge precisiefoutkalibratie en compensatie van het systeem garanderen de hoge prestaties. De apparatuur is ontworpen volgens militaire normen, waarbij de volledige rekening wordt gehouden met elektromagnetische afscherming, thermische balans, afdichting en andere prestaties om uitstekende milieuprestaties te garanderen.
Model:JIO-FOGD70A
Stuur onderzoek
Productomschrijving
JIOPTICS installation of fiber optic gyroscope to provide ease of integration flexibility, and our developers toolkit to rapid prototyping, not only meet the specification requirements, also provide high-quality performance meet the demand of end users.
Our services
JIOPTICS is a professional and efficient team. Provide OEM/ODM services for you, contact us to customize your exclusive fiber optical gyroscope
Product Features
Cost-effective fiber optic gyro and quartz accelerometer
Optional static or moving base self-alignment
Error parameters calibration and compensation in full
temperature range
Optional diverse input interfaces for GNSS/Odometer/DVL
Optional navigation modes
Excellent environmental suitability
Military standards
Optional static or moving base self-alignment
Error parameters calibration and compensation in full
temperature range
Optional diverse input interfaces for GNSS/Odometer/DVL
Optional navigation modes
Excellent environmental suitability
Military standards
Applications
Navigation and control for land vehicle
Antenna stabilization and control
UAV navigation
Attitude and heading reference
Antenna stabilization and control
UAV navigation
Attitude and heading reference
Fiber Optic Gyroscope Strapdown Inertial Navigation System Specification
| Performances | Start‐Up Time | 5min |
| Attitude Accuracy | 0.05deg, 1σ | |
| Heading Accuracy | 0.5×sec(Lat) deg, 1σ | |
| Input Ranges | Angular Rate | ±400deg/s |
| Acceleration | ±20g | |
| Work Environment | Work Temperature | ‐10℃~+55℃ |
| Storage Temperature | 55℃~+85℃ | |
| Vibration | 0.04g2 /hz @ 20~2000hz | |
| Shock work / no damage | 30g @ 6ms/50g @ 11ms | |
| Electrical Characteristics | Work Voltage | 28VDC |
| Consumption | ≤20W | |
| Communication | RS422/RS232/CAN/Ethernet | |
| Physical Characteristics | Size（W x D x H） | 140 x 100 x 82 mm |
| Weight | ≤2.5kg |
